Double Suction Mid - Open Marine Water Pump Horizontal Centrifugal

    Buy cheap Double Suction Mid - Open Marine Water Pump Horizontal Centrifugal from wholesalers

    Buy cheap Double Suction Mid - Open Marine Water Pump Horizontal Centrifugal from wholesalers
    • Buy cheap Double Suction Mid - Open Marine Water Pump Horizontal Centrifugal from wholesalers

    Double Suction Mid - Open Marine Water Pump Horizontal Centrifugal

    Ask Lasest Price
    Brand Name : Deyuan
    Model Number : DY113-130
    Certification : CCS
    Price : USD1000 to USD5000 per unit
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100 units per month
    Delivery Time : 7 to 30 days
    • Product Details
    • Company Profile

    Double Suction Mid - Open Marine Water Pump Horizontal Centrifugal


    Double Suction Mid - Open Marine Water Pump Horizontal Centrifugal


    Brief description:


    The CWS type pump is a single-stage double suction mid-open horizontal centrifugal pump.It is used to

    deliver the fresh water and the liquids physically and chemically similar to water. If the overflow component is made of stainless steel or coated with SEBF high performance epoxy powder coating, it can also be

    used to deliver the corrosive liquids.


    The maximum temperature of the delivered liquids shall not exceed 80℃. It is suitable for water supply and drainage in factory , mining ore,city and power station as well as for flood control and irrigation works of agricultural fields. It always used in the capital ship and Float Boatyard.


    The pump rotates anticlockwise viewed from motor.


    Main features:


    1. Compact structure , elegant appearance, convenient for installing .

    2. Double suction impeller make the axial force smallest , operation more stable , the internal surface of pump casing and the surface of impeller have the fuction of anti-cavitation .

    3. Adopt high quality bearing , insure the operation more stable . low noise,long working life.

    4. Mechnical seal or packing seal , insure 8000hours non-leakage working .


    Specification:


    TypeMain technical parameter (50HZ , 3phase ,380V)Motor power
    KW
    Capacity
    m3 / h
    Head
    m
    Speed
    R / min
    NPSHR
    m
    Shaft power
    kw
    150CWS-8.51255429503.825.237
    1605028.1
    2004229.7
    150CWS-8.5A1054429503.817.530
    1404020.3
    1703521.9
    150CWS-8.5B1003929503.116.322
    1303618.2
    1603219.4
    150CWS-61258429503.339.755
    1607846.9
    2007052.2
    150CWS-6A1056529503.327.345
    1406031.8
    1705435.7
    200CWS-132104829506.333.945
    2804239.3
    3353540.4
    200CWS-13A200432950630.837
    2703633.1
    3253034.9
    200CWS-92106829505.750.275
    2806360.4
    3355864.1
    200CWS-9A1805529505.536.455
    2454841
    2954042.8
    More types can be offered , pls contact us directly for more details.

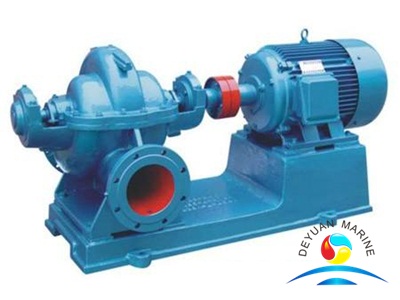

    Product's photo:



    Quality Double Suction Mid - Open Marine Water Pump Horizontal Centrifugal for sale
