    Marine Rotary Vane Steering Gear System Electro - Hydraulic ABS

    Ask Lasest Price
    Brand Name : Deyuan
    Model Number : DY080108
    Certification : CCS,ABS,DNV,BV,RINA ..
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 set/month
    Delivery Time : Within 20 to 30 days, According to customers's order
    • Product Details
    • Company Profile

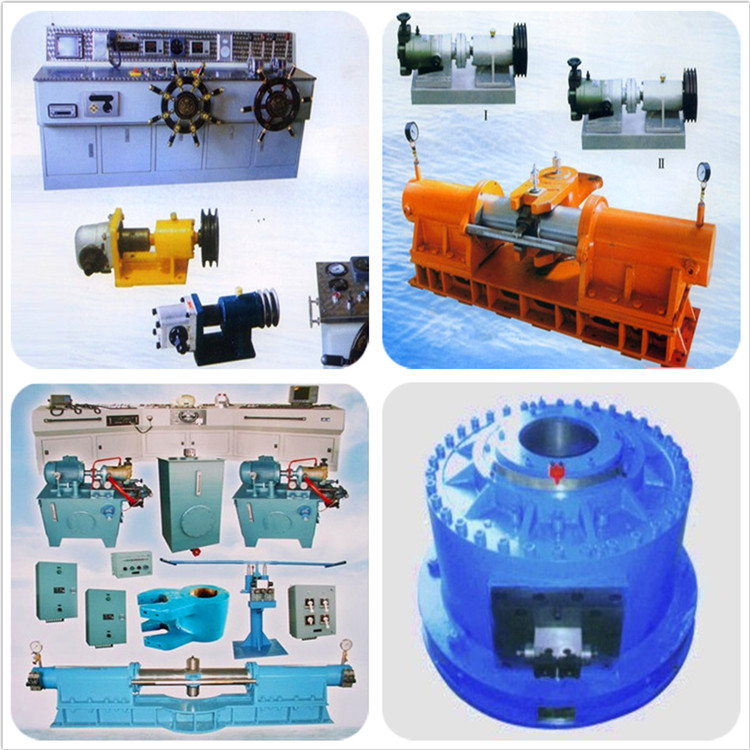

    Marine Rotary Vane Steering Gear System Electro - Hydraulic ABS

    Marine Rotary Vane Steering Gear System Electro - Hydraulic ABS


    Marin advantages:


    1. Electro-hydraulic control.

    2. Compact design.

    3. Suitable for normal rudder blades.

    4. Pumps with variable displacement or constant delivery.

    5. One-piece tiller for standard or keyless fit of rudder stock.

    6. pump units mounted on and completely piped with the cylinders.


    Specification:


    Suitable for:

    Containers, tankers, ferries, General cargo ships, passage ships, Dredgers and any other vessels that need more steering torque.


    (kn.m)

    Nominal

    Torque

    Turning

    Angle

    (°)

    (s)

    Turning

    time

    (Mpa)

    Max

    working

    oil

    pressure

    Gear pump/motor

    (mm)

    rudder

    tiller radius

    (Mm)

    Diameter

    of radius

    Type

    No

    Output

    (kw)

    10

    ±35

    ≤28/20

    6.5

    CBN-316

    2

    1.1

    240

    75-130

    16

    ±35

    ≤28/20

    10.2

    CBN-316

    2

    1.1

    240

    75-130

    20

    ±35

    ≤28/20

    12

    CBN-320

    2

    2.2

    240

    75-130

    25

    ±35

    ≤28/20

    10.9

    CBN-320

    2

    2.2

    290

    75-150

    30

    ±35

    ≤28/20

    9.8

    CBN-320

    2

    3

    290

    75-150

    40

    ±35

    ≤28/20

    10.3

    CBN-420

    2

    3

    360

    1160

    50

    ±35

    ≤28/20

    12.5

    CBN-420

    2

    4

    480

    170

    63

    ±35

    ≤28/20

    8.4

    CBN-420

    2

    4

    480

    175

    More hydraulic steering gear can be offered,pls contact us for more details


    Quality Control:

    Product Range: We specialized in majority of marine equipments& technique solution.

    Product Design: With strong engineer team, for all marine products, we support design, manufacture, install etc, according to your requirements. All products strictly conform to your confirmation.

    Product Process: Most of products are finished in our manufacture bases, thus quality and delivery time could keep best and , also avoid some details mistake

    Product Inspection: We support factory inspection and inspection/certification.



    Certificates:

    - Material certificates by a classification society
    - Inspection protocol
    - Inspection reports tank testing
    - NDT reports
    - Official certificates for accessories and other equipment


    Advantages of our factory:

    1. Control the product quality from the source
    2.The main mechanical stress components should pass flaw detection to ensure the quality.
    3. Adopt domestic famous brand electric device
    4. Fully equipped with accessories
    5. Easy installation and operation
    6. Provide professional customization service
    7. Reasonable price and good after-sale service
    8. Manufacture according to client's rquirements
