High Performance Stainless Steel Marine Oil Separator For Diesel Generating

Specifications:

Rated Capacity:6000 L/h(No.0light diesel oil)

Drum diameter:430mm

Power:11kW

Drum Speed:6000 r/min

Discharge:automatic discharging ;

Pump pressure:≥0.2MPa

Vibration speed:≤4.5 mm/s

Noise level:≤90 dB(A)

Weight:~1000 kg

Size(L*W*H):1152mmX880mmX1400mm

Separation temperature of heavy fuel oil:95~98°C

Separation conditions and actual productivity of mineral oil

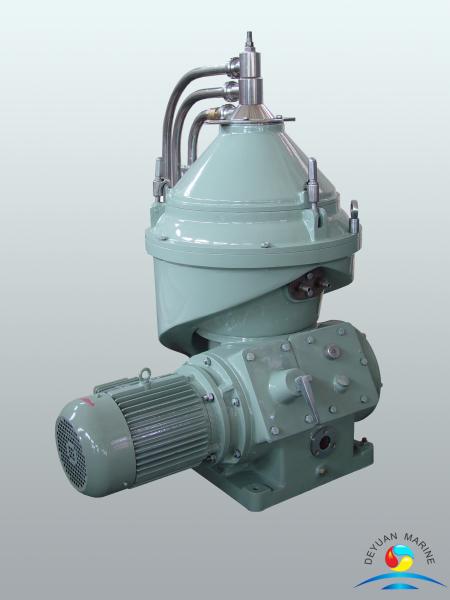

Descriptions of Veg Oil Centrifuge Separator:

The fluid is continuously pumped to a high-speed disc bowl separating centrifuge where subjected to high g-forces. The fluid typically separates into a heavy phase and a light phase. The 2 liquid phases exit the centrifuge through separate liquid discharge connections. Any residual solids are separated and discharged automatically with an automatic self-cleaning style unit.

Application of Veg Oil Centrifuge Separator:

It is mainly used for the liquid liquid separation or liquid liquid solid separation. For examples:

1) Vegetable and animal oil separation (vegetable oil degum, de-soap etc)

2) sea buckthorn oil, essential orange oil, essential rose oil etc extraction and separation

3) Waste water handling, waste oil treatment

4) milk separation, coconut oil separation

Main Parameters:
