Foam Fire Hydrant System , Cart Type Liquid Fire Protection Equipment

Brief description

1. Effective capacity: 9000L/min.
2. The max pressure: 16bar.
3. Inlet: Flange DN150 PN16.
4. Outlet: Flange connection.
5. Optional inlet flange: DN150/ANSI6

Detailed description

Fire foam monitor (ss125)
SS125 Standard Design Parameters SS125WHR/F
China Deyuan Marine Fitting Co.,ltd is leading supplier of FIFI system,Fire fighting system,marine fire pump,foam fire monitor,fire monitor,electric fire monitor,CO2 Fire-extinguishing system,fire extinguishing system,Pls contact us for more specific details.

Descriptions: Produced on requirement
Effective capacity: 9000L/min
The max pressure: 16bar
Inlet: Flange DN150 PN16
Outlet: Flange connection
Optional inlet flange: DN150/ANSI6
Rotation range:
Horizontal: 360° infinite
Vertical: +75°~ －45°
Weight: ~75Kg
Materials:
Body: Anti-corrosion aluminum alloy/Copper alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Flange: Anti-corrosion aluminum alloy/Copper alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position

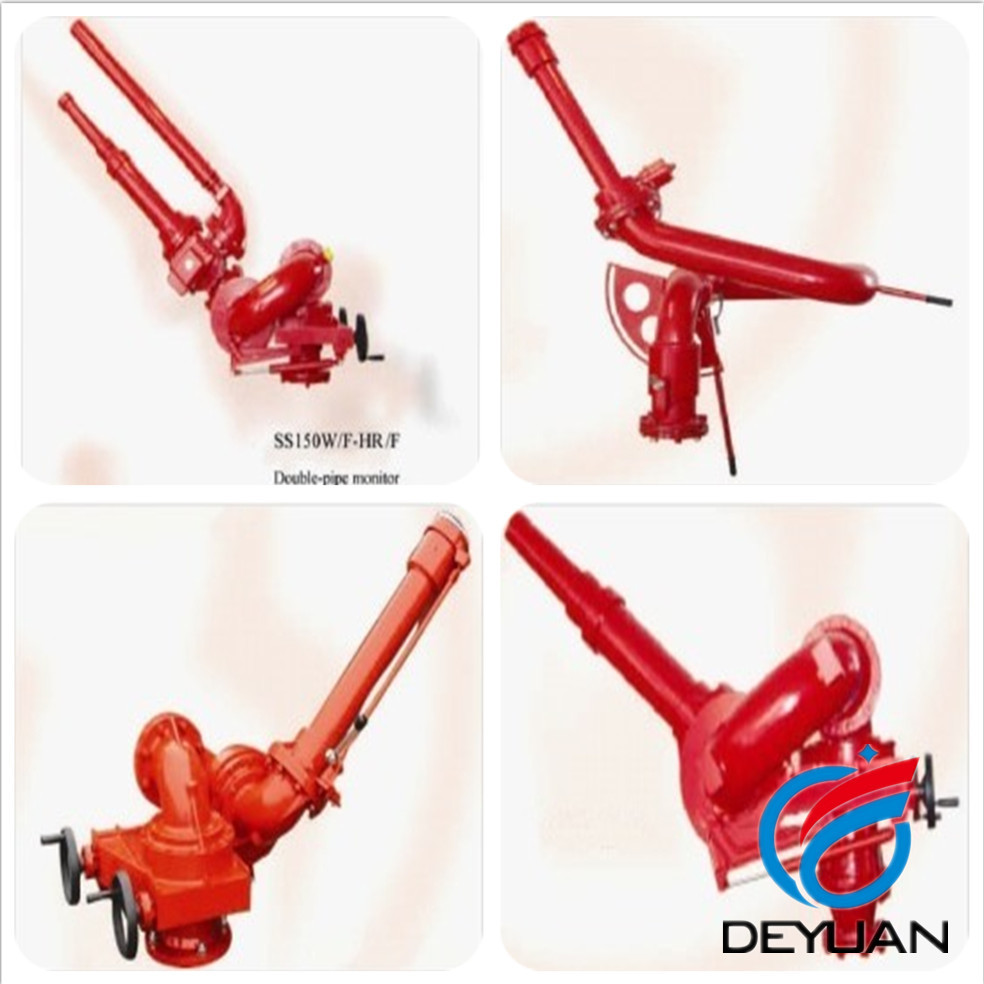

Photos
