Marine Foam Fire Suppression Systems Automatic Gas Aerosol

Brief description

1. Effective capacity: 26000L/min.
2. The max pressure: 16bar..
3. Inlet: Flange DN200 PN16 .
4. Outlet: Flange connection.

Detailed description

Fire foam monitor(SS200HR/F)
SS200 Standard Design Parameters SS200HR/F
China Deyuan Marine Fitting Co.,ltd is leading supplier of FIFI system,Fire fighting system,marine fire pump,foam fire monitor,fire monitor,electric fire monitor,CO2 Fire-extinguishing system,fire extinguishing system,Pls contact us for more specific details.

Descriptions: Produced on requirement
Effective capacity: 26000L/min
The max pressure: 16bar
Inlet: Flange DN200 PN16
Outlet: Flange connection
Optional inlet flange: DN250 / ANSI8''
Rotation range:
Horizontal: 360° infinite
Vertical: +75°~ －45°
Weight: ~120Kg
Materials:
Body: Anti-corrosion aluminum alloy/Copper alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Flange: Anti-corrosion aluminum alloy/Copper alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position

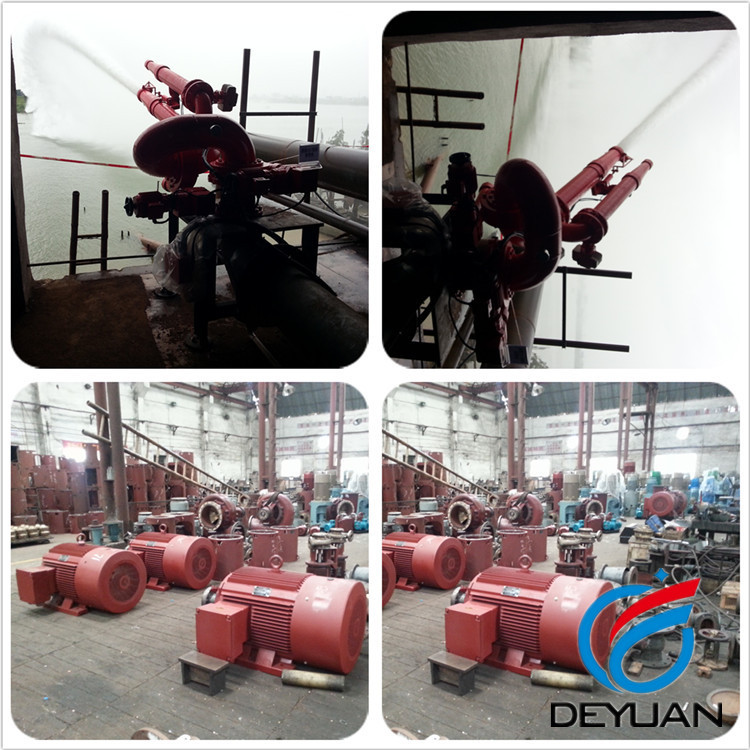

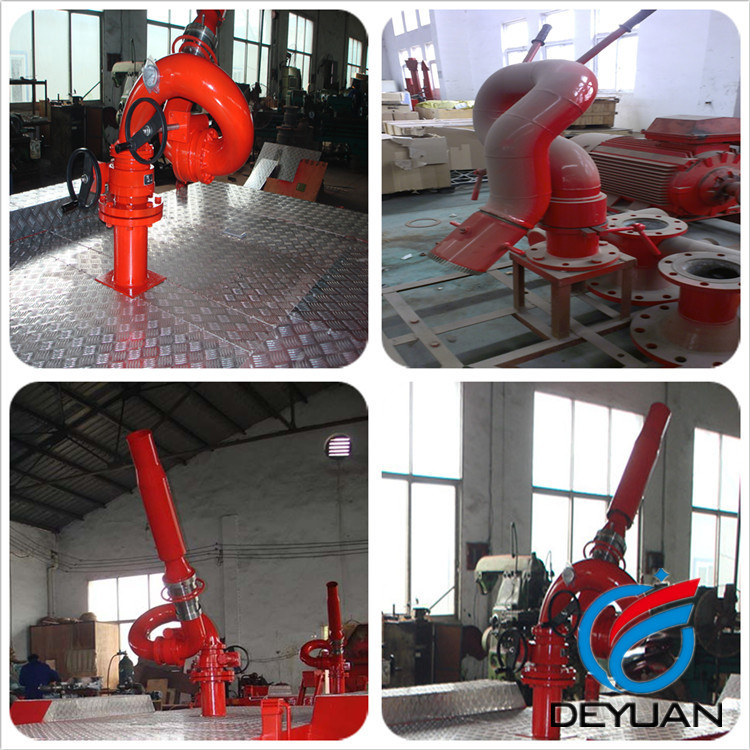

Photos

Zhuhai City Deyuan Import&Export Co., Ltd is a subsidiary company of China deyuan marine fitting Co., Ltd, .

We are the leading and trusted supplier of marine equipment and offshore equipment in the marine market of China.

We do export business globally in the market for many years and export lots of marine equipment to different countries. Our target is to be the best alternative for the customer's bottom line in the long perspective and always put good quality, good service in the first place. Because of that, we win high appreciation from our customers and have high reputation in this field

Our products include:

Marine life saving equipment: (immersion suit, life boat, inflatable boat, life raft, life jacket, life jacket light etc)

Marine fire fighting equipment: (FIFI system, SCBA, EEBD, fire suit, heat insulation suit, fire extinguisher etc)

Environment Protection Equipment: (Oily water separator, sewage treatment plant, fresh water generator, UV-sterilizer etc)

Marine Mooring Equipment: (marine anchor, anchor chain etc)

Marine Power&Propulsion Equipment: (Tunnel thruster, marine propeller, marine shaft etc)

Marine Deck Equipment: (Marine Windlass, Marine Winch, Marine Davit)

Marine Diesel engine: (CUMMINS Diesel engine, Weichai diesel engine, Deutz diesel engine)

These products are SOLAS compliant, approved by different Classification Society, such as ABS, BV, KRNK, GL, LR, RINA, CCS, DNV, IRS. Pls contact us for more information or just send yr inquiry to us.

We are very confident that our ethusiasam and profession, integrerity will earn your trust.
