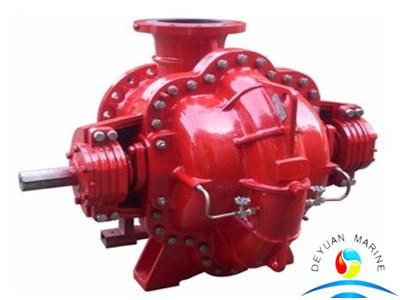

Water Pressure Booster Fire Suppression Systems Pump For Boat

Brief description

The CXB series marine external fire pump is horizontal structure, driven by marine diesel engine or marine motor.
It is used for transporting seawater or fresh water on boats for external or internal fire fighting by fire monitor.
This series of pump is mainly driven by marine diesel engine. Those with smaller power may also be driven by motor.
Viewing from the motor, there is two turning you can choices, but the crew thread in the shaft must be inverse. We can provide fire fighting cannon and control system bases to client’s request.

Detailed description

Type: Horizontal single stage side inlet top outlet centrifugal pump
Qty: 2 set
Model: SSCXB500-400
Medium: Seawater
Capacity: 3600 m3/h
Pump head: 140m
Pump speed: 1200 r/min
Power absorbed: 1890kw
Dimension of pump inlet: DN500
Dimension of pump outlet: DN400
Material:
Pump shell: Nodular cast iron
Impeller: Ni-Al bronze
Shaft: Stainless steel
Shaft sealing: Soft sealing

Photos

Customer visit

Zhuhai City Deyuan Import&Export Co., Ltd is a subsidiary company of China deyuan marine fitting Co., Ltd, .

We are the leading and trusted supplier of marine equipment and offshore equipment in the marine market of China.

We do export business globally in the market for many years and export lots of marine equipment to different countries. Our target is to be the best alternative for the customer's bottom line in the long perspective and always put good quality, good service in the first place. Because of that, we win high appreciation from our customers and have high reputation in this field

Our products include:

Marine life saving equipment: (immersion suit, life boat, inflatable boat, life raft, life jacket, life jacket light etc)

Marine fire fighting equipment: (FIFI system, SCBA, EEBD, fire suit, heat insulation suit, fire extinguisher etc)

Environment Protection Equipment: (Oily water separator, sewage treatment plant, fresh water generator, UV-sterilizer etc)

Marine Mooring Equipment: (marine anchor, anchor chain etc)

Marine Power&Propulsion Equipment: (Tunnel thruster, marine propeller, marine shaft etc)

Marine Deck Equipment: (Marine Windlass, Marine Winch, Marine Davit)

Marine Diesel engine: (CUMMINS Diesel engine, Weichai diesel engine, Deutz diesel engine)

These products are SOLAS compliant, approved by different Classification Society, such as ABS, BV, KRNK, GL, LR, RINA, CCS, DNV, IRS. Pls contact us for more information or just send yr inquiry to us.

We are very confident that our ethusiasam and profession, integrerity will earn your trust.
