OEM Marine Hydraulic Winch Air Accommodation Ladder For Boat

Brief description:

Hydraulic mooring winch mainly consists of hydraulic motor, planetary gearbox, band brake, clutch, drum, warping head (optional), valve block with braking and overload protection function. Due to fitted with valve block, the design of HPU can be simplified, and reliability of drives can be improved.

Main feature:

1. High startup efficiency and working efficiency.

2. compact design

3. minimum maintenance and one year warranty

4. wide line pull range up to 200 ton

5. Tailored solutions to meet customer's specific needs.

6. A range of accessories such as rope spooling device and protection guard are available on request.

Specification:

1, Rated working pull on the first layer: 200 KN

2, Supported load: 590 KN

3, Nominal speed:12 m / s

4, Unload speed: 30 m / s

5, Diameter of rope: 41 mm

6, Number of rope layer: 4

7, Capacity of drum: 400 meters

8, Type approval: CCS , ABS , BV , GL , LR , RINA , NK

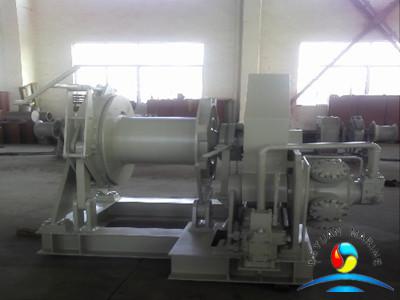

Product photos:
