Brand Name : | Deyuan Marine |
Model Number : | DY019202 |
Certification : | CCS, NK,etc |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 50 pcs/month |
Delivery Time : | 10-15 days |
Superstructure Rescue Boat Equipment Ship Door 6 Grips Weathertight
Brief description:
Manufactured according to IMO , SOLAS
Good weather tightness , light opening
Application: used for the doorway of superstructure above freeboard deck or deck house and in
accordance with ISO 6042-1980
Option: radius/mitered corner , double door leaf , window / deadlight / port light
Material: aluminum / steel
Available certificates: GL , DNV , CCS , BV , ABS , LR , KR , RS , etc.
Sizes and surface treatment can be customized according to customer's requests.
Main features:
1. Quick acting open mode
2. Good tightness
3. CCS , BV , NK , ABS , etc
Specification:
Clear Size | MA | MB | MC | MD | ME | ||||||||||
B X L | t | Grip Quan tity | Weight(kg) | t | Grip Quan tity | Weight (kg) | t | Grip Quan tity | Weight(kg) | t | Grip Quan tity | Weight (kg) | t | Grip Quan tity | Weight(kg) |
500X1000 | 5 | 4 | 60 | 3 | 4 | 46 | - | - | - | - | - | - | - | - | - |
600X1200 | 5 | 4 | 76 | 3 | 4 | 56 | 3 | 4 | 57 | - | - | - | - | - | - |
600X1400 | 5 | 6 | 85 | 3 | 6 | 66 | 3 | 6 | 66 | 3 | 2 | 67 | 3 | 2 | 68 |
650X1550 | 5 | 6 | 99 | 3 | 6 | 74 | 3 | 6 | 75 | 3 | 2 | 76 | 3 | 2 | 78 |
650X1650 | 5 | 6 | 103 | 3 | 6 | 76 | 3 | 6 | 77 | 3 | 2 | 79 | 3 | 2 | 80 |
800X1650 | 5 | 8 | 126 | 3 | 8 | 94 | 3 | 6 | 95 | 3 | 2 | 96 | 3 | 2 | 98 |

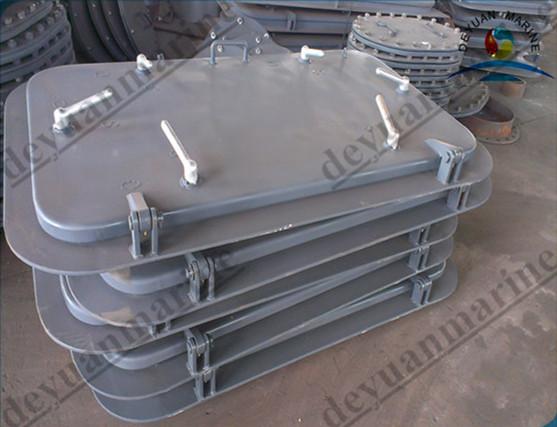

Product's photo:
![]() |
