Ship Outfitting Equipment , Portable Aluminium Gangway Ladder
Brief description:
This product is to be used for embarkation or disembarkation of personnel when various types of ships are mooring alongside a wharf.
CCS, BV,ABS,DNV,LR,GL certificate avaliable.
Main features:
1. Materials:Aluminium alloy and steel
2. With spray-painted primer for steel or anode oxidation-treatment for aluminium alloy material
3. Available in 8 to 15meter standard length
4. Option handrail type and height
Specification:
Model | Main Size | Weight(kg) | ||||||
L | L1 | L2 | l | H | h | Model A | Model B | |
A(B) 8 | 8000 | 4000 | 4000 | 3200 | 350 | 180 | 182 | 205 |
A(B)10 | 10000 | 5000 | 5000 | 4830 | 500 | 250 | 221 | 244 |
A(B)12.5 | 12500 | 6250 | 6250 | 7230 | 550 | 300 | 296 | 319 |
A(B)15 | 15000 | 7500 | 7500 | 7230 | 750 | 500 | 362 | 388 |

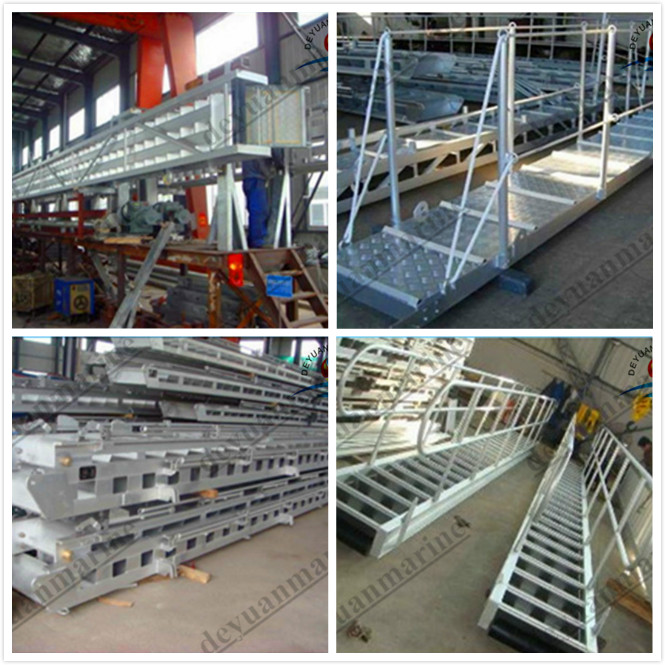

Product's photo:
![]() |
