Brand Name : | Deyuan |
Model Number : | DY303-330 |
Certification : | BV,CCS,ABS,GL,LR,DNV and etc |
Price : | USD100 to USD 1000 per unit |
Payment Terms : | T/T, Western Union, L/C |
Supply Ability : | 500 units per month |
Delivery Time : | 3 to 30 days |
Marine Sailboat Hatch Covers Stainless Steel Engine Room Skylight
Brief description:
Used for skylight driven by pneumatic , electric , hydraulic or machinery.
- Waterproof marine skylight.
- Supply of superior factory which can guarantee quanlity.
- Available in marine steel , stainless steel and aluminum alloy , copper materials.
- Hinged type , Water tight / Weather tight and fireproof marine windows.
- Fixed , opened (Bolted or Welded) Type.
- Round or Right Angle corners for option.
- Left open / right open or sliding mechanisms.
- Rubber gasket three years warranty
- Customize available
- OEM service and Special requirement is available
Main features:
Ship skylight for engine room
1. Material:steel,Aluminium
2. For engine room
3. Customized sizes
4. ABS , GL , DNV , LR , BV , KR , NK , etc are available
Specification:
Model | Clear size | B1*L1 | B2*L2*r | Clear size | to | t1 | H | Weight |
(kg) | ||||||||
C D | 600*900 | 635*935 | 590*890*95 | 2(300*450) | 4 | 5 | 100 | 45 |
800*1200 | 836*1236 | 790*1190*95 | 2(400*600) | 4 | 5 | 63 | ||
1200*1600 | 1238*1638 | 1190*1590*95 | 2(400*600) | 5 | 6 | 131 | ||
1200*2000 | 1238*2038 | 1190*1990*95 | 2(400*600) | 5 | 6 | 159 |

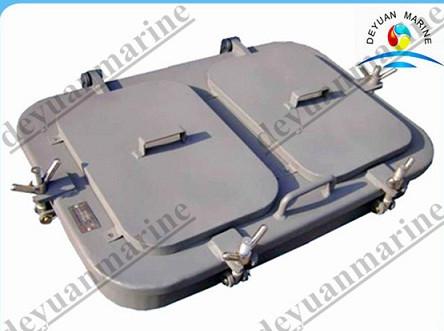

Product's photo:
![]() |
