Brand Name : | Deyuan Marine |
Model Number : | DY019108 |
Certification : | CCS |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 100 pcs/month |
Delivery Time : | 10-30 days |
Marine War Ships/ Sight-seeing Boat Aluminum Weathertight Cabin
Hollow Door
Brief description:
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine
outfitting equipment , such as marine steel doors , marine aluminum
door , marine windows , marine hatch cover , marine pilot rope
ladder , embarkation rope ladder , gangway ladder , bulwark ladder
etc.
Applicable for cabin of various kinds of ships and war ships.The
surface of door will be anodized baking finished or PVC covered
Main features:
This model's upper and lower parts of door leafs could be
opened/closed seperately or integrally.
specially use for sight-seeing boats or yachts.
Aluminium door test request:
It should passed the hose test which nozzle diameter 12.5 mm,water
pressure 0.25Mpa
Specification:
Model | Clear Size (mm) | Door Frame Size (mm) | Cut-out Size (mm) | Weight |
WXh | W1Xh1 | W2Xh2 | (kg) | |
DY-349G | 600X1600 | 690X1690 | 654X1654 | 30.1 |
650X1650 | 740X1740 | 704X1704 | 31.4 | |
700X1700 | 790X1790 | 754X1754 | 33.1 | |
700X1750 | 790X1840 | 754X1804 | 34.6 | |
750X1750 | 840X1840 | 804X1804 | 36.1 | |
800X1750 | 890X1840 | 854X1804 | 38.2 |
Model | Clear Size (mm) | Door Frame Size (mm) | Cut-out Size (mm) | Weight | |
WXh | W1Xh1 | W2Xh2 | R | (kg) | |
DY-349G | 600X1600 | 690X1690 | 654X1654 | 80 | 30.5 |
650X1650 | 740X1740 | 704X1704 | 31.9 | ||
700X1700 | 790X1790 | 754X1754 | 33.5 | ||
700X1750 | 790X1840 | 754X1804 | 35.1 | ||
750X1750 | 840X1840 | 804X1804 | 36.6 | ||
800X1750 | 890X1840 | 854X1804 | 38.7 |

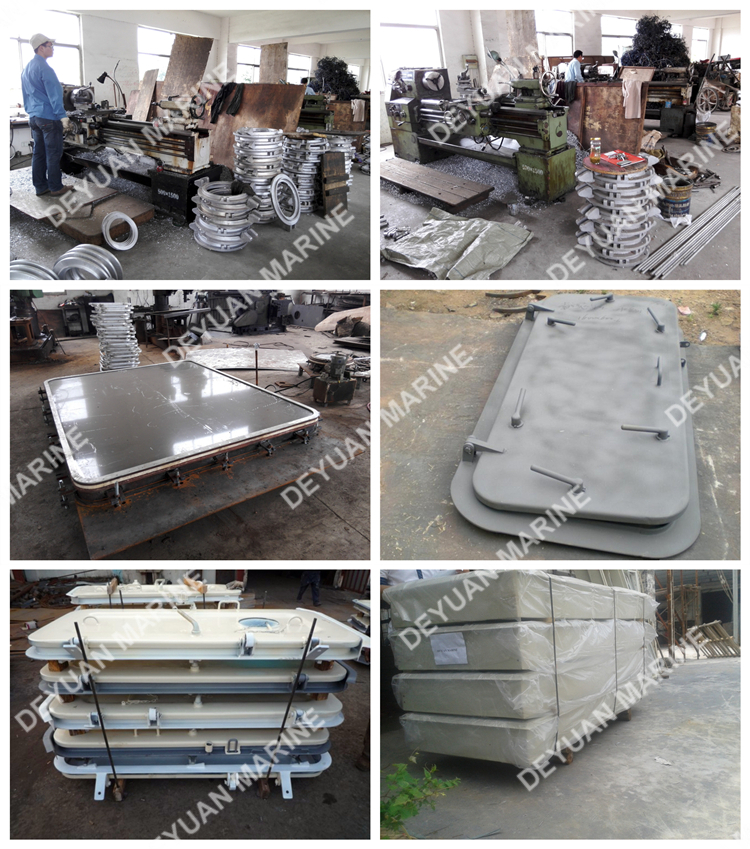

Product's photo:
![]() |
