Biochemical Process Sewage Treatment Machine Auto Control For Vessels

Overview:

Marine Sewage Treatment Plant belongs to the key devices for prevention of pollution form ships in

seas and oceans according to the revised Annex IV of the International Convention of the Prevention of Pollution (MARPOL 73/78).This device is applicable to treat the sewage, which means human body wastes and the wastes from the toilets on vessels and which is also called “black water”, to meet the effluent standards of IMO. MEPC.159(55), and discharge the effluent overboard . This device is according to the resolution MEPC.159(55) enacted on 13 October 2006.The convention (MARPOL 73/78) provides that all STPs installed on board on or after 1 January 2010 should meet the resolution MEPC159(55).

Features:

1.Adopting horizontal circular design,ellipse closures on both ends,pressure resistance and compact

structure.

2.The device is adopted auto-control,and compliance with the requirment of 24h unattened cabin.

3.Adopting the "MBR" technology,devices allow to the narrow size,and solve the conflict of small space

of carbin,but big volume of device.

4.The intermittent aeration in bio-membrane tank and hollow fiber membrane tank,form the process of "aerobic-anoxic",and resolve the problem of "nitrogen and phosphorus removal.

Description:

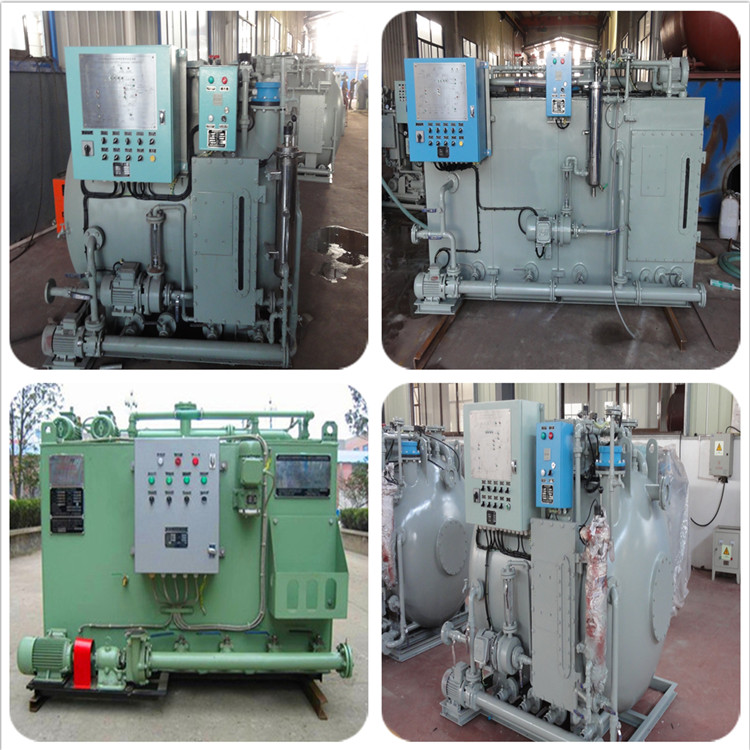

The Sewage treatment plant adopts the principle of Activated Sludge,Bio contact Oxidation and Membrane Biological Reactor(MBR) to digest organic pollutant.MBR can treat

organic pollutant efficiently,drastically and cleanly to ensure the effluent can meet the requirements

of the resolution MEPC.159(55) and other much harsher requirements.

Parameters:

Zhuhai City Deyuan Import&Export Co., Ltd is a subsidiary company of China deyuan marine fitting Co., Ltd, .

We are the leading and trusted supplier of marine equipment and offshore equipment in the marine market of China.

We do export business globally in the market for many years and export lots of marine equipment to different countries. Our target is to be the best alternative for the customer's bottom line in the long perspective and always put good quality, good service in the first place. Because of that, we win high appreciation from our customers and have high reputation in this field

Our products include:

Marine life saving equipment: (immersion suit, life boat, inflatable boat, life raft, life jacket, life jacket light etc)

Marine fire fighting equipment: (FIFI system, SCBA, EEBD, fire suit, heat insulation suit, fire extinguisher etc)

Environment Protection Equipment: (Oily water separator, sewage treatment plant, fresh water generator, UV-sterilizer etc)

Marine Mooring Equipment: (marine anchor, anchor chain etc)

Marine Power&Propulsion Equipment: (Tunnel thruster, marine propeller, marine shaft etc)

Marine Deck Equipment: (Marine Windlass, Marine Winch, Marine Davit)

Marine Diesel engine: (CUMMINS Diesel engine, Weichai diesel engine, Deutz diesel engine)

These products are SOLAS compliant, approved by different Classification Society, such as ABS, BV, KRNK, GL, LR, RINA, CCS, DNV, IRS. Pls contact us for more information or just send yr inquiry to us.

We are very confident that our ethusiasam and profession, integrerity will earn your trust.
