Brand Name : | Deyuan |
Model Number : | CXH-10P |
Certification : | CCS,ABS,DNV,BV,RINA .. |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 20 sets/month |
Delivery Time : | Within 20 to 30 days, According to customers's order |
Double - Deck Marine Electric Equipment Led Boat Navigation Lights
The scope of application:
Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.
Products characteristic:
1. It is convenient to install and replace the bulb, and there are automatic leakage holes in the bottom.
2. The shell adopts good quality metal material steel, the surface is painted the special mold-powder, has
the feature of corrosion-resisting and shock resistance.
3. The lampshade adopts polycarbonate, it has the feature of ultraviolet radiation resistance and does
not discolor ect.
Production authentication:
Approved by CCS(China Classification Society),and ZY of China Fishery Inspection.
Adopt standard:
1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972 and
GRADE ENTRY NORMS FOR STEEL SHIPS.
2. Conform to GB/T3028-1995 standard.
3. Confirm to the international standard IEC60598-1-2008.
Specification:
Name | Type | Visible Distance | Level Arc | Lamp Holder | Bulb | Protection Class | Color | Weight |
Starboard Light | CXH1-10P | 3N.M | 112.5° | B22d | 24v60w 110v65w 220v65w | IP56 | Green | 3.8KG |
Port light | CXH2-10P | 3N.M | 112.5° | Red | 3.8KG | |||

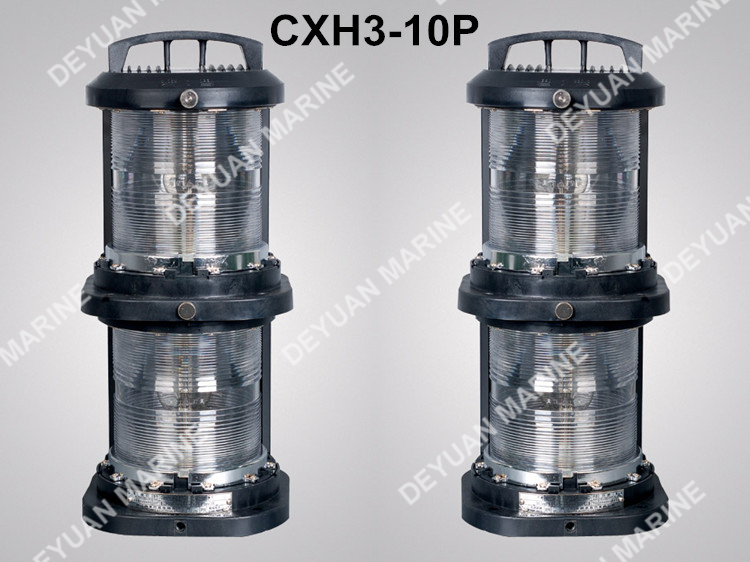

Masthead light | CXH3-10P | 6N.M | 225° | White | 3.7KG | |||

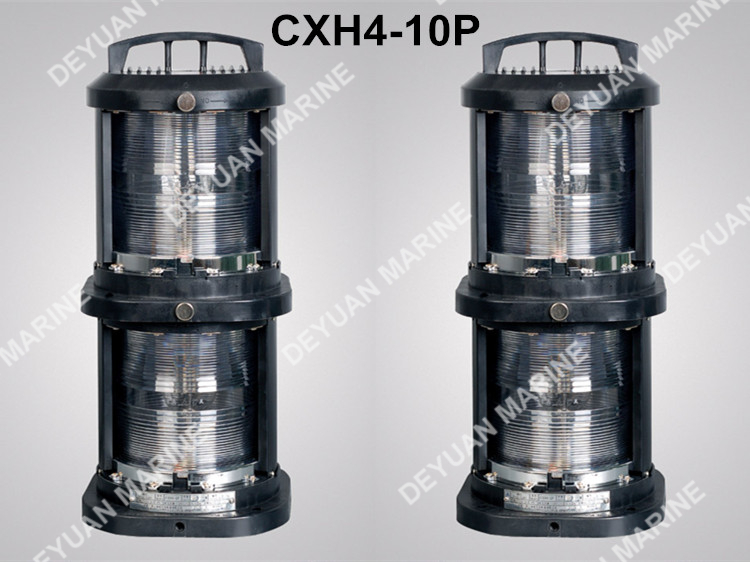

Stern light | CXH4-10P | 3N.M | 135° | White Yellow | 3.7KG | |||
All-round light | CXH6-10P | 3N.M | 360° | Red Green White | 3.6KG |
Quality Control:
Product Range: We specialized in majority of marine equipments&
technique solution.
Product Design: With strong engineer team, for all marine products,
we support design, manufacture, install etc, according to your
requirements. All products strictly conform to your confirmation.
Product Process: Most of products are finished in our manufacture
bases, thus quality and delivery time could keep best and , also
avoid some details mistake
Product Inspection: We support factory inspection and
inspection/certification.
Certificates:
- Material certificates by a classification society
- Inspection protocol
- Inspection reports tank testing
- NDT reports
- Official certificates for accessories and other equipment
Advantages of our factory:
1. Control the product quality from the source
2. The main mechanical stress components should pass flaw detection
to ensure the quality.
3. Adopt domestic famous brand electric device
4. Fully equipped with accessories
5. Easy installation and operation
6. Provide professional customization service
7. Reasonable price and good after-sale service
8. Manufacture according to client's rquirements
![]() |
