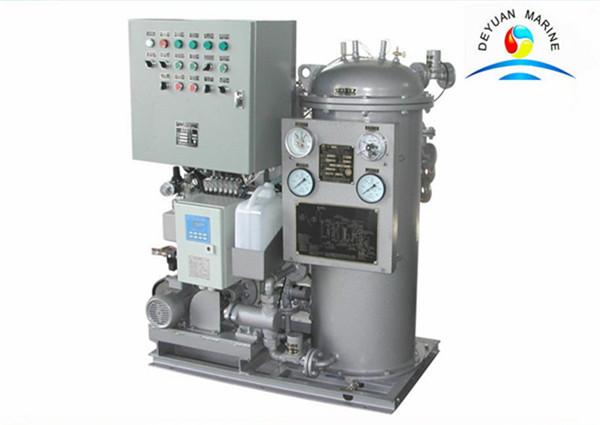

Big Capacity 1.0 M3 / H Bilge Oil Water Separator 15PPM OWS

    Buy cheap Big Capacity 1.0 M3 / H Bilge Oil Water Separator 15PPM OWS from wholesalers

    Buy cheap Big Capacity 1.0 M3 / H Bilge Oil Water Separator 15PPM OWS from wholesalers
    • Buy cheap Big Capacity 1.0 M3 / H Bilge Oil Water Separator 15PPM OWS from wholesalers

    Big Capacity 1.0 M3 / H Bilge Oil Water Separator 15PPM OWS

    Ask Lasest Price
    Brand Name : Deyuan Marine
    Model Number : DY-OWS
    Certification : CCS,BV.EC.ABS..
    Price : According to order volume
    Payment Terms : T/T.L/C.D/A.D/P.Western Union ,Money Gram
    Supply Ability : 1-5000
    Delivery Time : 20days
    • Product Details
    • Company Profile

    Big Capacity 1.0 M3 / H Bilge Oil Water Separator 15PPM OWS


    Big Capacity 1.0 M3 / H Bilge Oil Water Separator 15PPM OWS

    Features:

    (1) capacity: From 0.25m3/h to 5m3/h
    (2) Oil content in the effluent water ≤ 15 ppm
    (3) Meet the standard of IMO MEPC. 107(49)
    (4) Heating mode: Steam /electric heating


    Overview:

    This device can be used to treat oily bilge water in order to make it reach the requirements of IMO.
    MEPC.107 (49) resolution,which is also called OILY WATER SEPARATOR .
    It contains type approved 15ppm bilge water separator ,15ppm bilge alarm and Automatic shut down
    Device .



    Application field:

    1) Fitting to ships with keel being laid after 2005
    2) Fitting to Power plant with Engine room, the discharge need to comply environmental regulation
    3) Fitting to machining plant for the disposal of waste water
    4) For water disposal at drilling platform

    Main Parameters:

    Type(M3/H)

    0.25

    0.5

    1.0

    1.5

    2.0

    2.5

    3.0

    4.0

    5.0

    Rating/max capacity (M3/H)

    0.25

    0.5

    1

    1.5

    2

    2.5

    3

    4

    5

    Power of pump (KW)

    0.37

    0.55

    0.75

    1.1

    1.1

    1.5

    1.5

    2.2

    2.2

    Electric heater power(KW)

    3

    3

    option

    option

    option

    option

    option

    option

    option

    steam heater (m2/kw)

    __

    __

    1/30

    1/45

    2/60

    2/75

    3/90

    4/120

    5/150

    15ppm bilge alarm

    Included
