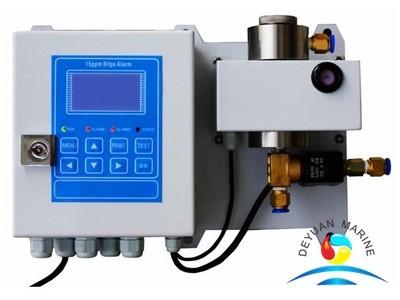

220VAC / 110VAC Marine Auxiliary Machinery Precise Oil Content Monitor

Features:

(1)Applying the most advanced multi-band infrared measuring technique and the micro-processing technology, fast response with high-accuracy-measurement;

(2)The overall use of EMI suppression design to overcome the environmental impact on equipment,and improve system stability and equipment reliability;

(3)Real-time display of oil concentration and working state of the system.

(4)Real-time recording of the alarm status and automatically store data,historical data at any time to print;

(5)Measuring room to facilitate maintence and cleaning,simple operation;

(6)With the monitoring of operation condition,automatic control over discharge of sewage to function when equipment in failure,maintence or replacement

(7)The 15 ppm Bilge Alarm type BilgMon 488 is approved and certified in accordance with the latest IMO resolution MEPC107(49) .

Specifications:

Measure range:0-30ppm

Alarm Point:1-15 ppm adjustable

Accuracy: Better than 5mg/l

Power Supply:220VAC/110VAC ± 10%

Display:LCD display

Size (over all):360 mm W x 240 mm H x 105 mm D

Standard:IMO.Res.MEPC.107(49)

Technique Parameter:
