High Quality Marine Life Saving Equipment Hydraulic Slewing Crane Device Landing Davit

    Buy cheap High Quality Marine Life Saving Equipment Hydraulic Slewing Crane Device Landing Davit from wholesalers

    Buy cheap High Quality Marine Life Saving Equipment Hydraulic Slewing Crane Device Landing Davit from wholesalers
    • Buy cheap High Quality Marine Life Saving Equipment Hydraulic Slewing Crane Device Landing Davit from wholesalers

    High Quality Marine Life Saving Equipment Hydraulic Slewing Crane Device Landing Davit

    Ask Lasest Price
    Brand Name : Deyuan
    Model Number : Liferaft Landing Device
    Certification : CCS,ABS,BV,LR,EC.GL
    Price : According To Order Volume
    Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100pcs Per Month
    Delivery Time : According to Order Volume
    • Product Details
    • Company Profile

    High Quality Marine Life Saving Equipment Hydraulic Slewing Crane Device Landing Davit

    High Quality Mairne Hydraulic Slewing Crane Device Liferaft Landing Davit


    Product Feature


    Hydraulic Slewing Crane

    1.Hydraulic slewing crane &rescue boat liferaft landing device .

    2.Working load:21~23KN .

    3.Hoisting speed:≥18m/min.

    4.Landing speed:40-60m/min.


    Product Details


    Hydraulic Slewing Crane & Rescue Boat Liferaft Landing Device

    This equipment uses hydraulic drive rotary type,by its own gravity of the boat to make it down to the water,which could make the boat slew to outboard in case of losing of the power supply.While lowering,the sailors in the boat could pull the remote ontrol steel rope,through the pulley around the reel.To lift the winch hammer to control the boat/raft lowering or stop.This also could be operated by sailors on the operation deck.The winch is use of motor-driven winch gear box and gear box with centrifugal speed and manual brake function delegated.The device is designed and manufacturing according to the latest SOLAS standards and international standards.


    Product Data


    typeMax.Working loadHoisting loadHoisting speedLanding speedRope capacity of the reelMax rotation radius
    HD2-1021KN14KN

    ≥18m/min

    40-60m/min30m4500mm
    HD3-1030KN27KN4500mm
    HD3-10-123KN14KN7000mm
    HD3-10-223KN18KN7000mm

    Crane main technical data
    Max.hoisting loadRope capacity of the reelMaximum rotation angleLanding speedRotation radius
    2T

    30M


    ≤330°


    ≥15m/min


    10000MM

    3T
    3T

    3T

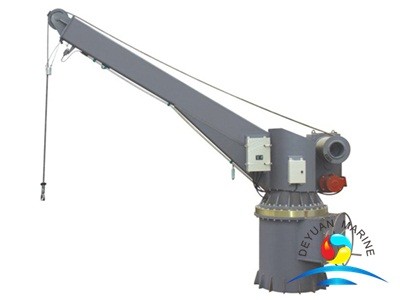

    Product Pictures




    High Quality Marine Life Saving Equipment Hydraulic Slewing Crane Device Landing Davit
