    With Huge Power Marine Electric/Hydraulic Fixed Pitch Propeller Bow Thruster

    Ask Lasest Price
    Brand Name : Deyuan marine
    Model Number : TT500~TT2400
    Certification : CCS,ABS,CE,EC,GL,BV
    Price : USD2000~10000/Piece
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 Pieces Per Month
    Delivery Time : Up to quantity
    • Product Details
    • Company Profile

    With Huge Power Marine Electric/Hydraulic Fixed Pitch Propeller Bow Thruster


    Product Features


    With Huge Power Marine Electric/Hydraulic Fixed Pitch Propeller Bow Thruster


    • Propeller Diameter 500-2400mm.
    • Type: Controllable pitch and fixed picth
    • Electric or engine drive.
    • CCS, BV, ABS, NK, etc
    • Easy Installation and Periodical Inspection
    • Is especially reduced duct lip and has a structure that it is able to weld anywhere on outer surface of duct for installation, On the periodical inspection, it is almost
    • Not needed to change parts except seal.
    • Various type of driving
    • Compact new control system can provide easy operation. Customer can choose various configuration of prime mover, electric motor, diesel engine or hydraulic motor.



    Detail Specifications


    With Huge Power Marine Electric/Hydraulic Fixed Pitch Propeller Bow Thruster

    TypeTT500TT600TT700TT800TT900TT1000TT1100TT1300TT1480TT1650TT2000TT2400
    Max Input Power (KW)63/7290/105135/165/180/190200/235280/290315/340445/480560/620680/7301050/9001580/1720
    Reduction Ratio1..522.0712.072.4172.423.093.093.784.3644.734.824.63
    Max Input Torque (N.m)6009009001400140021002100300038004500725015400
    Max Input speed (r/min)1450/17501450/17501450/17501450/17501450/17501450/17501450/17501450/17501450/17501450/17501450/1190980/1190
    Propeller Speed (r/min)954/1151700/845700/845600/724600/724600/724469.1/566384/463332.3/401307/370301/247211/257
    Propeller Diameter. (mm)500600700800900900110013001480165020002400
    Max thrust10/11.214.5/16.320/24.829.5/30.531/35.443/45.249/53.867/7388/95105/110165/150250/260
    Cylinder standard length(mm)6008008009209201045104511901320144616801990
    Cylinder standard inner Diameter.(mm)5156157158189181020112013281510168020302430

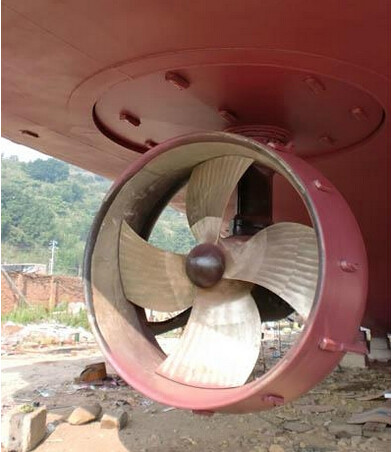

    Product Picture



    With Huge Power Marine Electric/Hydraulic Fixed Pitch Propeller Bow ThrusterWith Huge Power Marine Electric/Hydraulic Fixed Pitch Propeller Bow ThrusterWith Huge Power Marine Electric/Hydraulic Fixed Pitch Propeller Bow Thruster
